Product Description

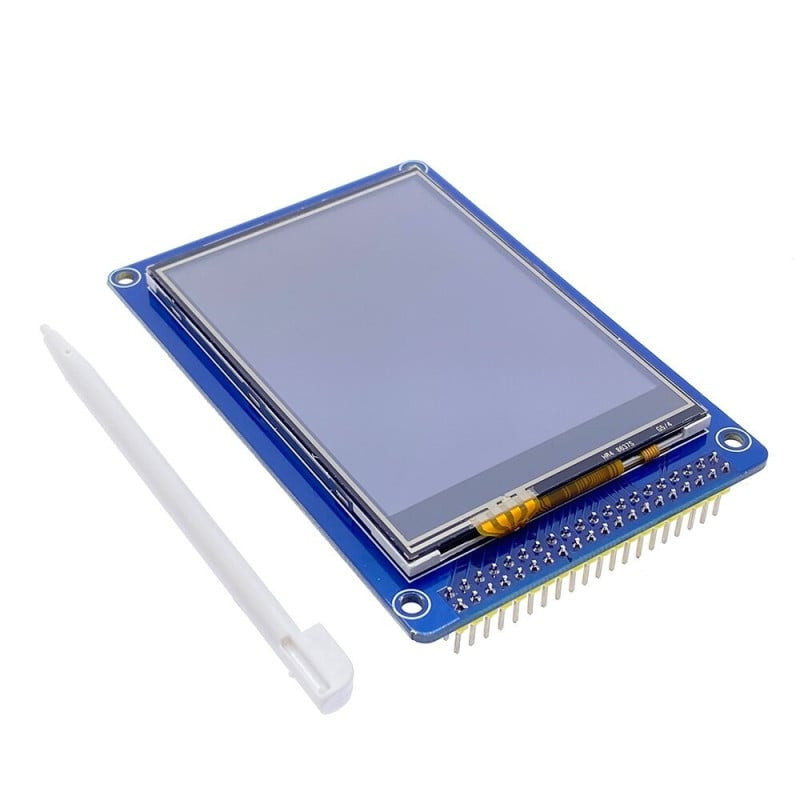

The 3.2" TFT display with ILI9341 controller delivers vivid colors and good viewing angles in a compact 240×320 px format—ideal for graphical interfaces, menus, control panels, or educational projects. This version includes a resistive touch panel and an onboard microSD slot, so you can load graphics, icons, or fonts directly from the card.

This is a “bare” module with an 8080-style parallel interface (ribbon/headers ~34 pins), designed for 3.3 V logic; it does not connect directly to Arduino UNO/MEGA without an adapter/level shifting.

For MEGA/DUE or other 3.3 V MCUs, we recommend a dedicated adapter board or level shifting lines to protect the display and achieve stable speeds.

An example of an adapter board is: TFT LCD Mega Shield V2.2

Technical Details

• Diagonal: 3.2 inch (81 mm)
• Resolution: 240 × 320 pixels (portrait format)
• Graphics controller: ILI9341 (8080 parallel interface, 8/16-bit)
• Touch: 4-wire resistive panel (commonly uses XPT2046/ADS7843-compatible controller – SPI interface)*
• Storage slot: microSD (SPI interface)
• Logic voltage: 3.3 V (requires level shifting for 5 V boards)
• Backlight power: LED backlight (3.3 V; do not power BL from the MEGA’s 3.3 V pin – use a capable 3.3 V source and/or a dedicated BL driver)
• Connector: 34 pins (data bus + control + touch + SD) — not a shield, requires wiring/adapter.

More details on LCDWIKI.COM

Package Contents

• 1× 3.2" TFT Display 240×320 with ILI9341 controller
• Integrated resistive touch panel
• Onboard microSD slot
• (Cables/adapter not included; for Arduino MEGA/UNO you need a 34-pin → Arduino adapter and/or 5 V⇄3.3 V level shifters)
