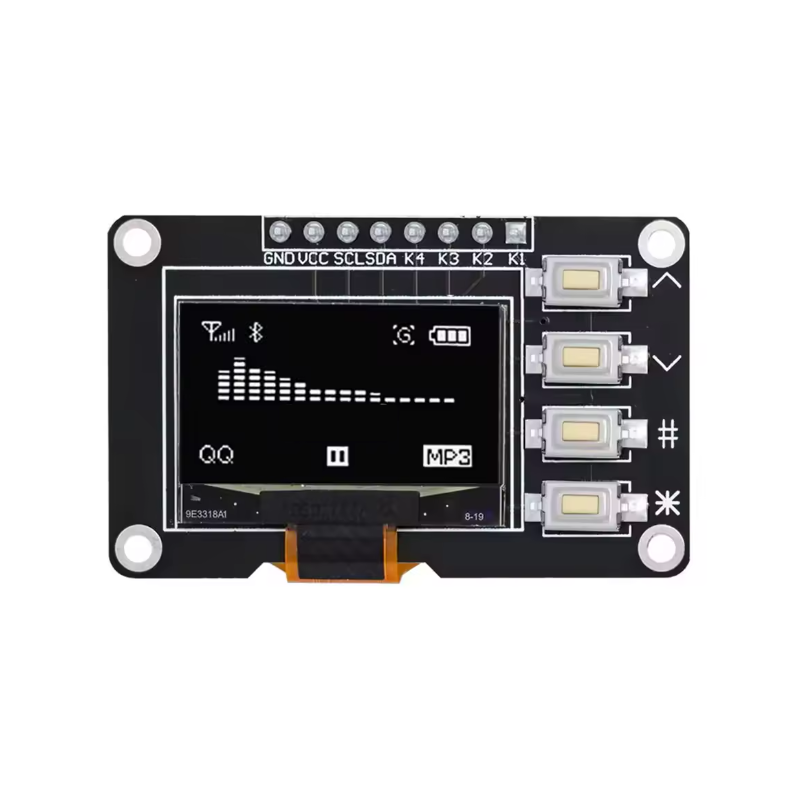

Display OLED 0.96" Alb I2C cu 4 butoane

Product Description:

The 0.96" White OLED Display Module with 4 Buttons is a practical solution for displaying information and enabling user interaction in embedded projects. The monochrome OLED screen has a resolution of 128x64 pixels and uses the I2C protocol for simple connection with microcontrollers such as ESP32, Arduino, or Raspberry Pi.

The module integrates 4 tactile buttons that can be used for menu navigation, selections, or commands, making it ideal for local control projects or simple interfaces. Its low power consumption and compact size make it suitable for portable or space-constrained applications.

Technical Specifications:

• Display type: Monochrome OLED (white)
• Size: 0.96 inch
• Resolution: 128x64 pixels
• Interface: I2C (SCL, SDA)
• Integrated buttons: 4 (K1, K2, K3, K4)
• Connection pins: GND, VCC, SCL, SDA, K1 – K4
• Operating voltage: 3.3V – 5V
• Module dimensions: approximately 42mm x 26mm

Recommended Applications:

• Control menus for IoT devices
• Visual feedback in Arduino or ESP32 projects
• Local configuration panels
• Portable devices with minimal user interface

Package Contents:

• 1x 0.96" OLED Display Module with 4 buttons (I2C)
