Soclu pentru sigurante cilindrice 6.3A THT

Product description

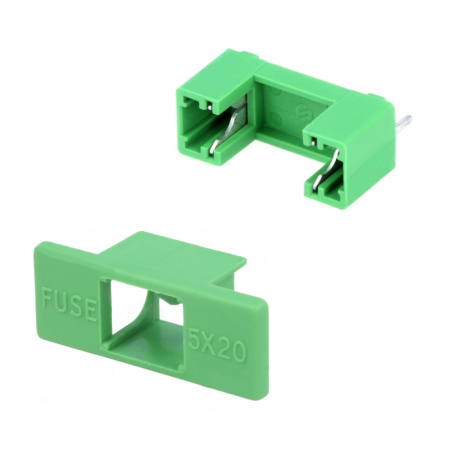

PCB fuse holder (THT) for 5×20 mm cylindrical fuses, rated up to 6.3 A. Flame-retardant thermoplastic housing (green) with metal contacts for a secure grip of the fuse tube. Suitable for power supplies and electronic modules where quick fuse replacement is required.

Specifications

• Fuse size: cylindrical 5×20 mm
• Mounting: THT (through-hole)
• Max current: 6.3 A
• Rated voltage: 250 VAC
• Contact resistance: ≤ 5 mΩ
• Operating temperature: −30…+85 °C
• Housing material: thermoplastic, UL94-V0
• Pin pitch: 22.6 mm
• Terminals: length ~3.5 mm; PCB hole Ø ~1.5 mm
• Body size: approx. 24.4 × 10.5 × 9.4 mm
• Weight: ~1.46 g
• Color: green
• Related code: ZHL7X-H (manufacturer series)

Package contents

• 1× 5×20 mm cylindrical fuse holder, THT (6.3 A)
