Product Description

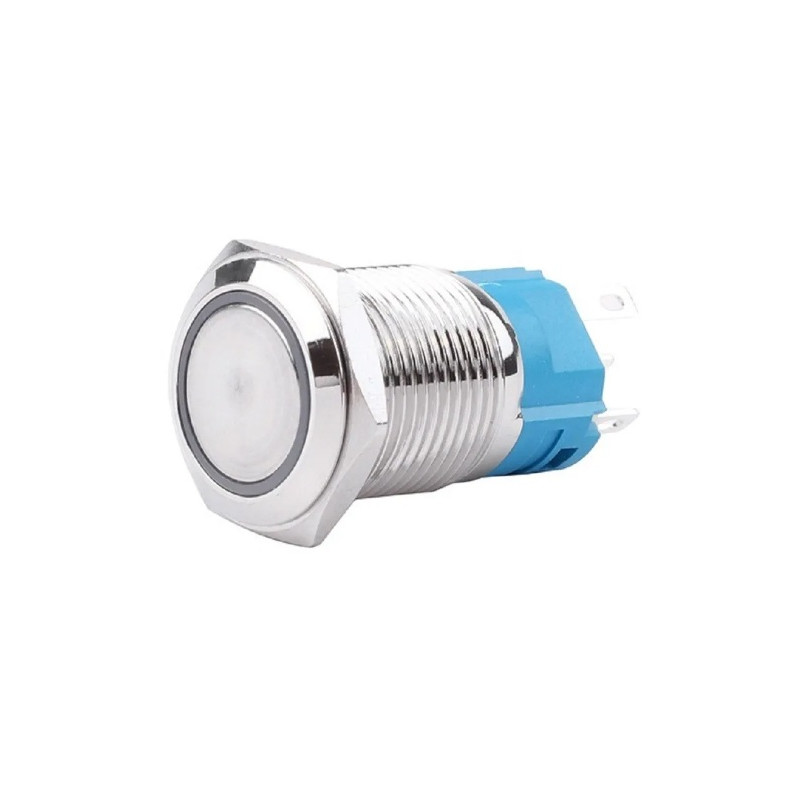

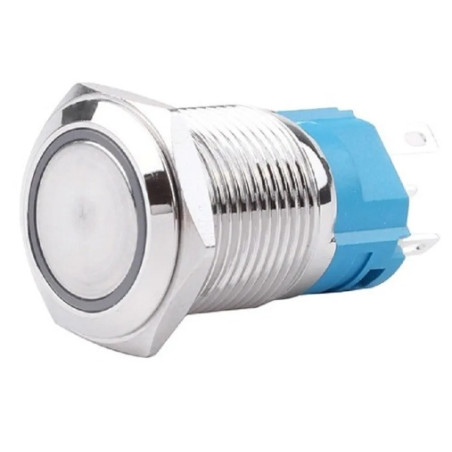

Illuminated push button with latching (ON–OFF) for panel mounting, 12 mm diameter and a red light ring powered at 12–24 V. Robust metal construction, premium look, ideal for control panels, DIY projects, 3D printers, automation, and automotive applications (12/24 V).

The latching mechanism keeps its state after pressing, and the LED’s separate contacts allow the illumination to be used independently.

Technical Details

• Type: latching push button – ON/OFF positions
• Panel mounting: hole Ø 12 mm
• Threaded body: M12
• Illumination: red LED ring, supply 12–24 V DC (internal resistor; observe polarity)
• Switching contacts: COM, NO, NC (SPDT) + 2 LED pins
• Body material: metal (stainless-steel look)
• Connections: solder pins
• Panel recommendation: typical thickness 1–6 mm
• Operating temperature: –20…+55 °C (indicative, general use)
• Use: indoor/outdoor protected from direct water; for higher IP use proper gasket and sealing

Package Contents

• 1× Latching illuminated push button, Ø12 mm, red ring, 12–24 V
• 1× Panel mounting nut
• 1× Mounting washer/gasket
